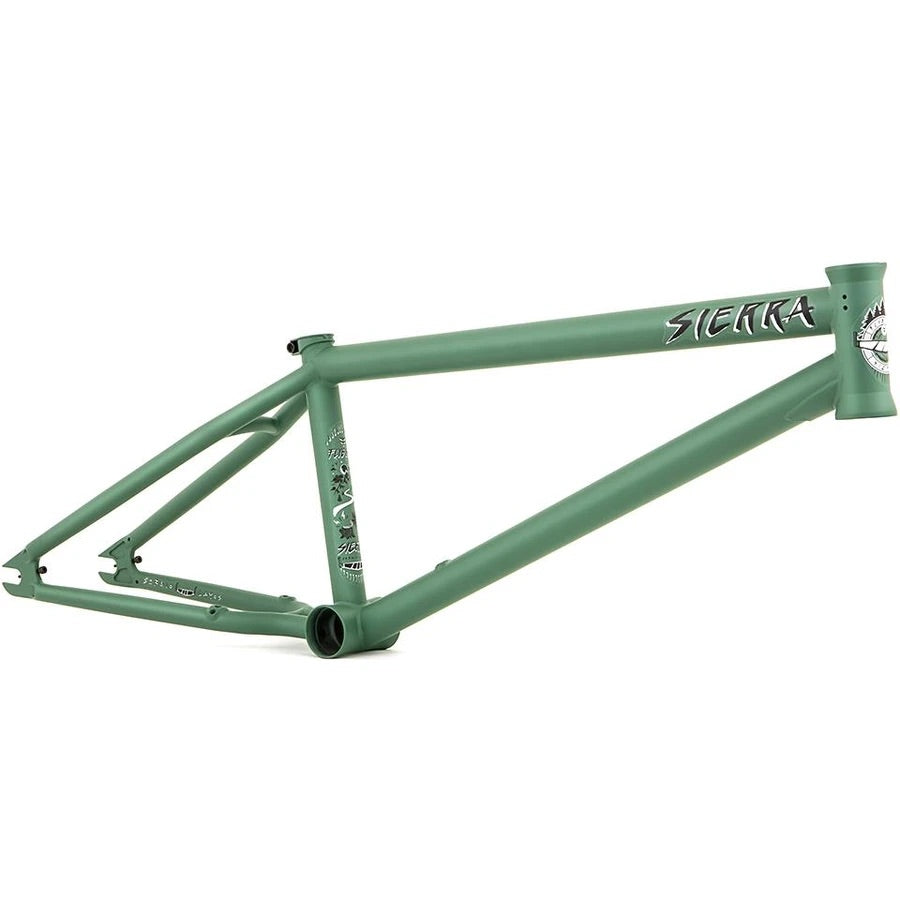

Fly Bikes Sierra Frame

$374.99
  • After another amazing year for Sergio Layos, we made a small change to make his signature frame even better. Sergio has decided to make the move back to a 75º head tube angle.
    The frame features internal and external gussets, multi-butted and tapered tubing, an Investment Cast seat post clamp with the Horizontal Cut System, removable EBS style brake mounts and Investment Cast Dropouts with integrated chain tensioners.



  • TUBING MATERIAL 4130 CRMO / JAPANESE SANKO TRIPLE BUTTED
  • HEADTUBE MATERIAL CNC MACHINED / 4130 CRMO / HEAT TREATED
  • BOTTOM BRACKET MATERIAL CNC MACHINED / 4130 CRMO / HEAT TREATED
  • DROPOUTS MATERIAL INVEST CASTING / 4130 CRMO / HEAT TREATED
  • SEAT CLAMP MATERIAL INVEST CASTING / 4130 CRMO / HEAT TREATED
  • SEATSTAYS BRIDGE MATERIAL INVEST CASTING / 4130 CRMO / HEAT TREATED
  • TOP TUBE  / 21"
  • HEAD TUBE 75º
  • SEAT TUBE 71º
  • REAR END 13.6"
  • STANDOVER 8.75"
  • BOTTOM BRACKET HEIGHT 11.5"
  • HEAD TUBE LENGTH 113 MM / 4.45"
  • BRAKE SYSTEM EBS / CHAINSTAYS
  • WEIGHT 21" 2.200 KG / 4.85 LB
By Fly
Color: Forest Green
