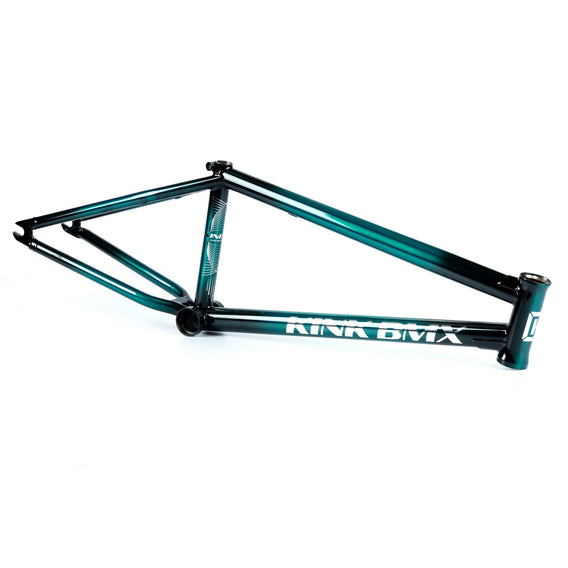

Kink Kinetic Frame

$399.99

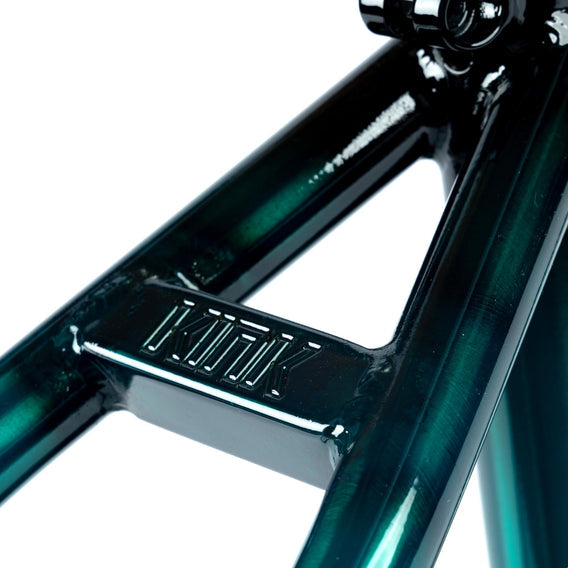

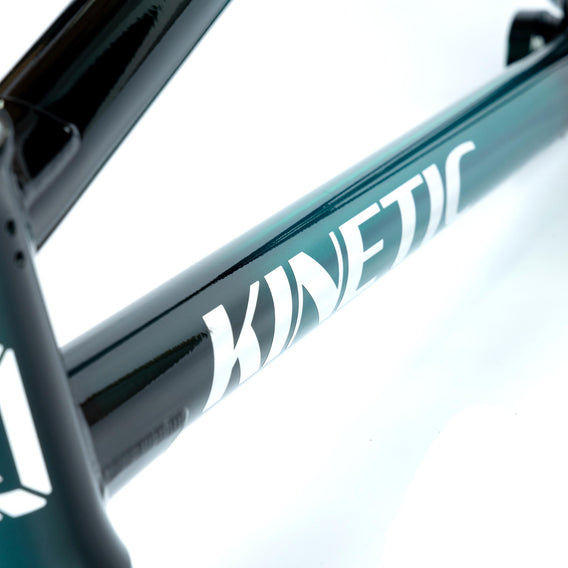

Kinetic, or energy from motion, perfectly describes Jacob Cable’s riding and thus inspired the name of his signature Kink Kinetic frame. After years of riding different frames from Kink, this frame is designed with all of Jacob’s preferred geometry to suit his technical street riding style. The 75.5 degree headtube angle is responsive and perfect for locking into nose manuals, and the 13” chainstay length is short but still stable. Custom square formed bridges give this frame a unique look while adding stiffness to the rear triangle. The oval toptube and downtube give the front end a sleek look and are both supported with gussets for extra strength. This frame comes standard with an integrated seat post clamp, integrated chain tensioners, and removable brake lugs for those looking to install brakes (mount kit sold separately).



 GEOMETRY

Toptube Sizes 20.5”, 20.75”, 21”
Chainstay Length 13" Slammed
Bottom Bracket Height 11.7"
Standover Height 9"
Headtube Angle 75.5°
Seattube Angle 71°
Headtube Height

5"



TECH SPEC

Material

100% Seamless Sanko 4130 Chromoly Tubing

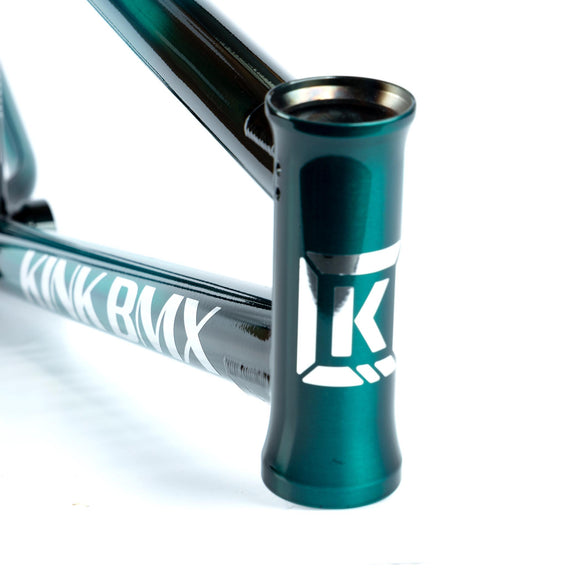

Headtube Integrated Campy Spec
Dropouts

Investment Cast with Integrated Chain Tensioners
Bottom Bracket Internally and Externally Machined Mid Size BB
Braking Removable Through-Bolt Brake Mount System
Particulars Toptube and Downtube Gussets
Widened Stays for Big Tire Clearance
Integrated Seat Post Clamp
Square Formed Seatstay and Chainstay Bridges
Weight 4lb 15oz (20.5")
By Kink
Color: Cayman Blue
Size
View details
