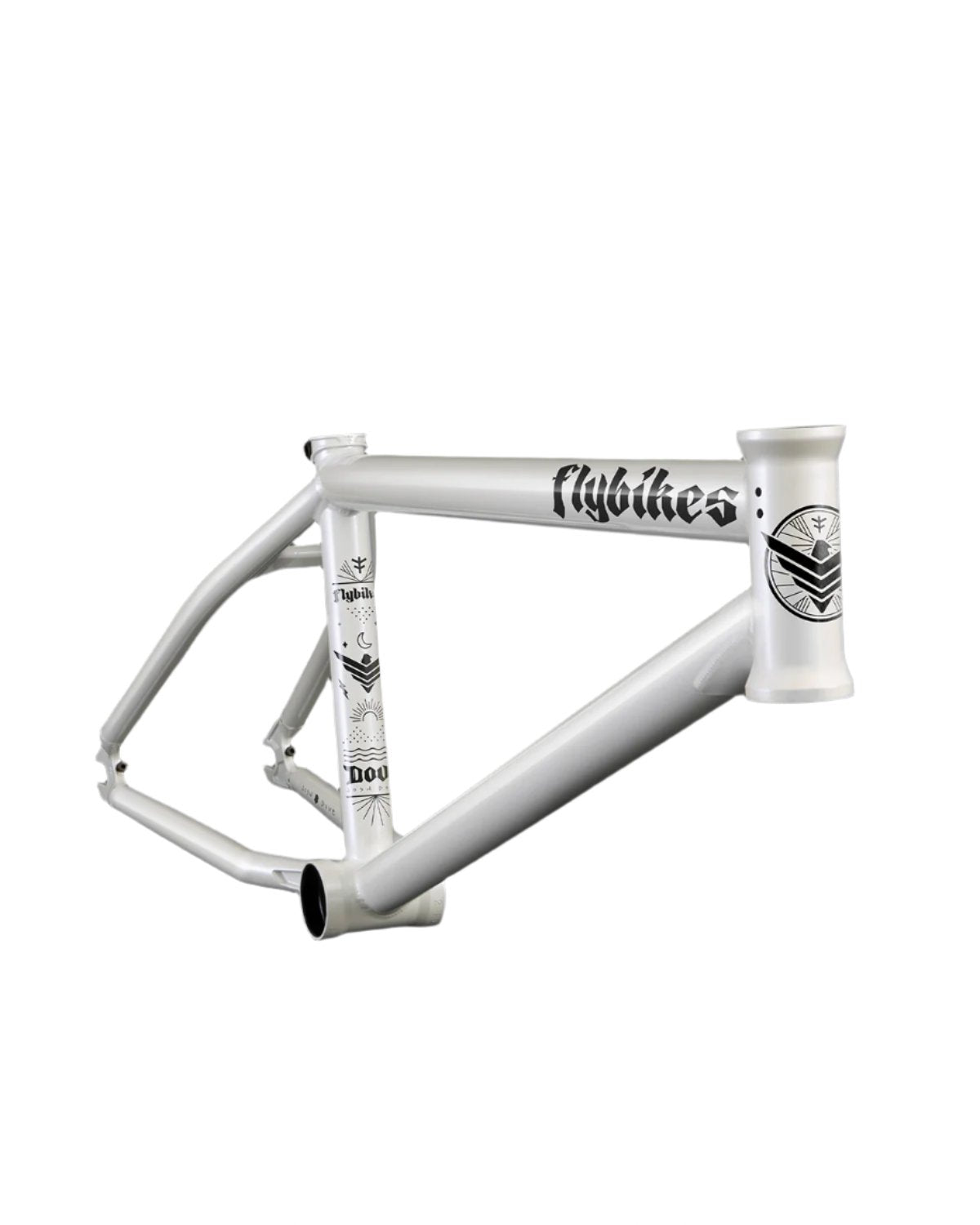

Fly Dove Frame

The Dove frame comes equipped with all the latest technology, such as investment cast in the seat stays bridge, dropouts, and chain stays yoke, as well as multi-butted and tapered tubing with internal gussets. Those features combined with Dovey's preferred geometry, make this frame a perfect fit for all kind of transitions.

After several requests for a revival of Tierra frame, we've also reintroduced its geometry with a few subtle adjustments, for modern park riding.

So, whatever your transition riding style is smashing bowls, trails, or parks, the brand-new Dove frame has got you covered.

SPECIFICATIONS

• Tubing Material
  4130 CrMo / Japanese Sanko Triple Butted
• Headtube Material
  CNC Machined / 4130 CrMo / Heat Treated
• Chain Stays Yoke
  Invest Casting / 4130 CrMo / Heat Treated
• Seat Stays Bridge
  Invest Casting / 4130 CrMo / Heat Treated
• Bottom Bracket
  CNC Machined / 4130 CrMo / Heat Treated / Mid BB
• Dropouts
  Invest Casting / 4130 CrMo / Heat Treated / Integrated Chain Tensioners
• Seat Clamp Material
  Invest Casting / 4130 CrMo / Heat Treated
• GEOMETRY
• Top Tube
  20.5" / 21" / 21.5"
• Rear End
  13.6" & 13.2" versions
• Headtube Angle 13.6" version
  74.5º
• Headtube Angle 13.2" version
  75º
• Standover 13.6" version
  8.75"
• Standover 13.2" version
  8.5"
• Seat Tube
  71º
• Bottom Bracket Height
  11.5"
• Head Tube Length
  113 mm / 4.45"
• Brake System
  EBS / Seatstays
• Weight 21"
  2.530 gr. / 5.56 lb.
