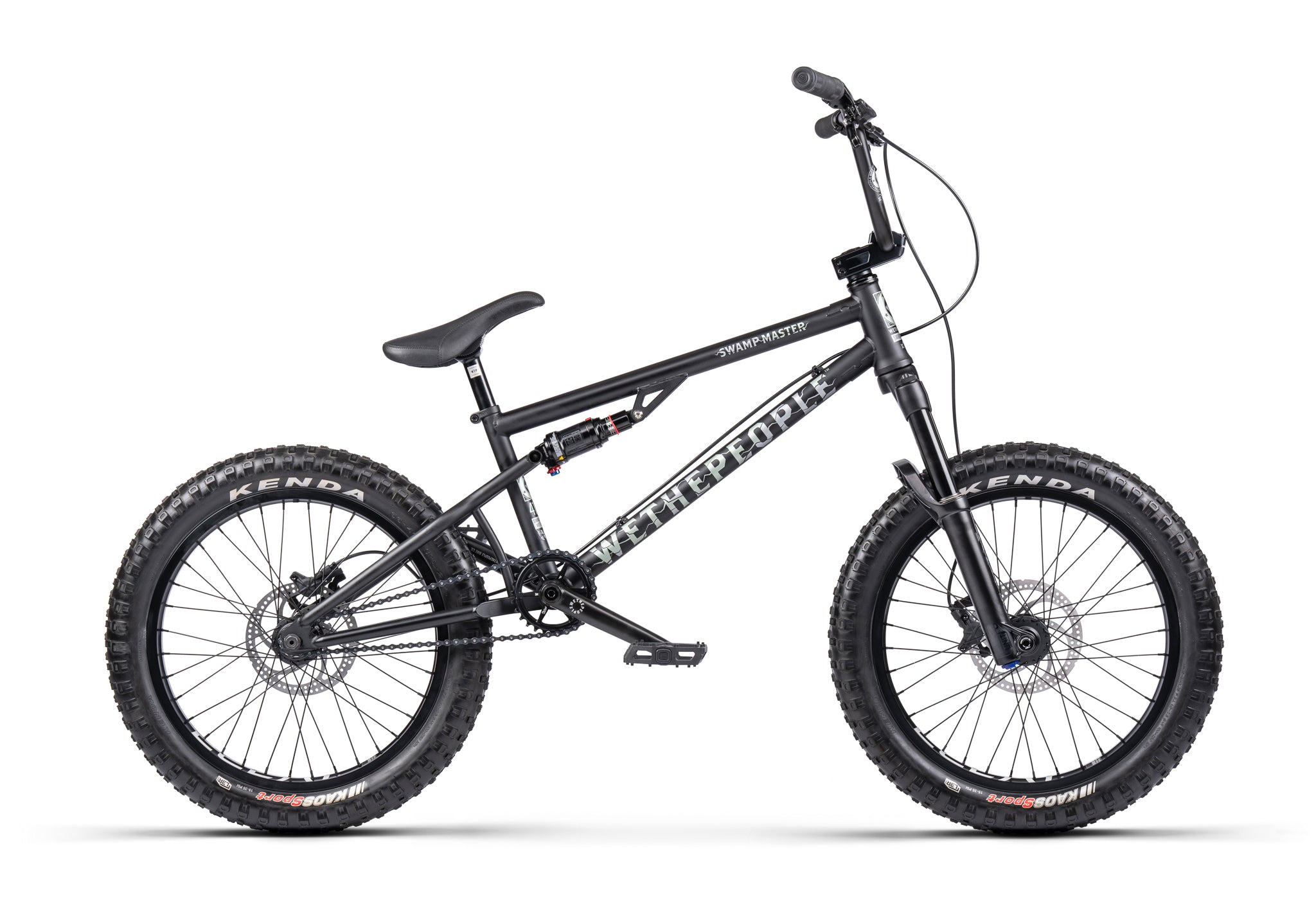

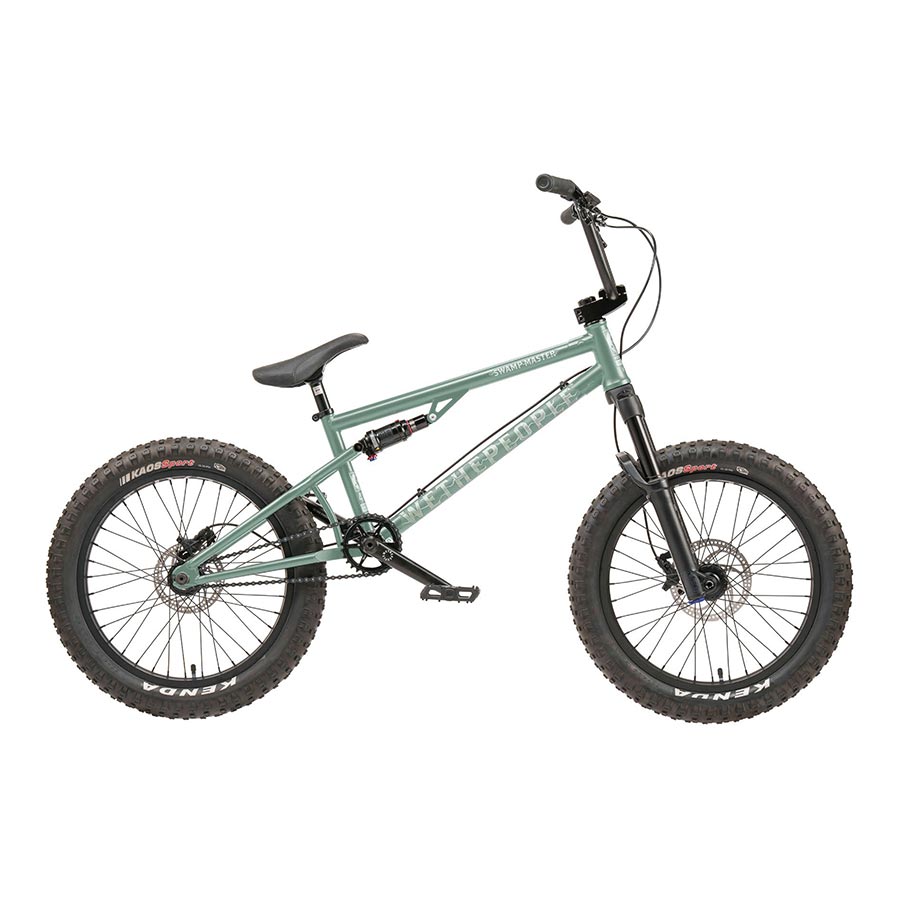

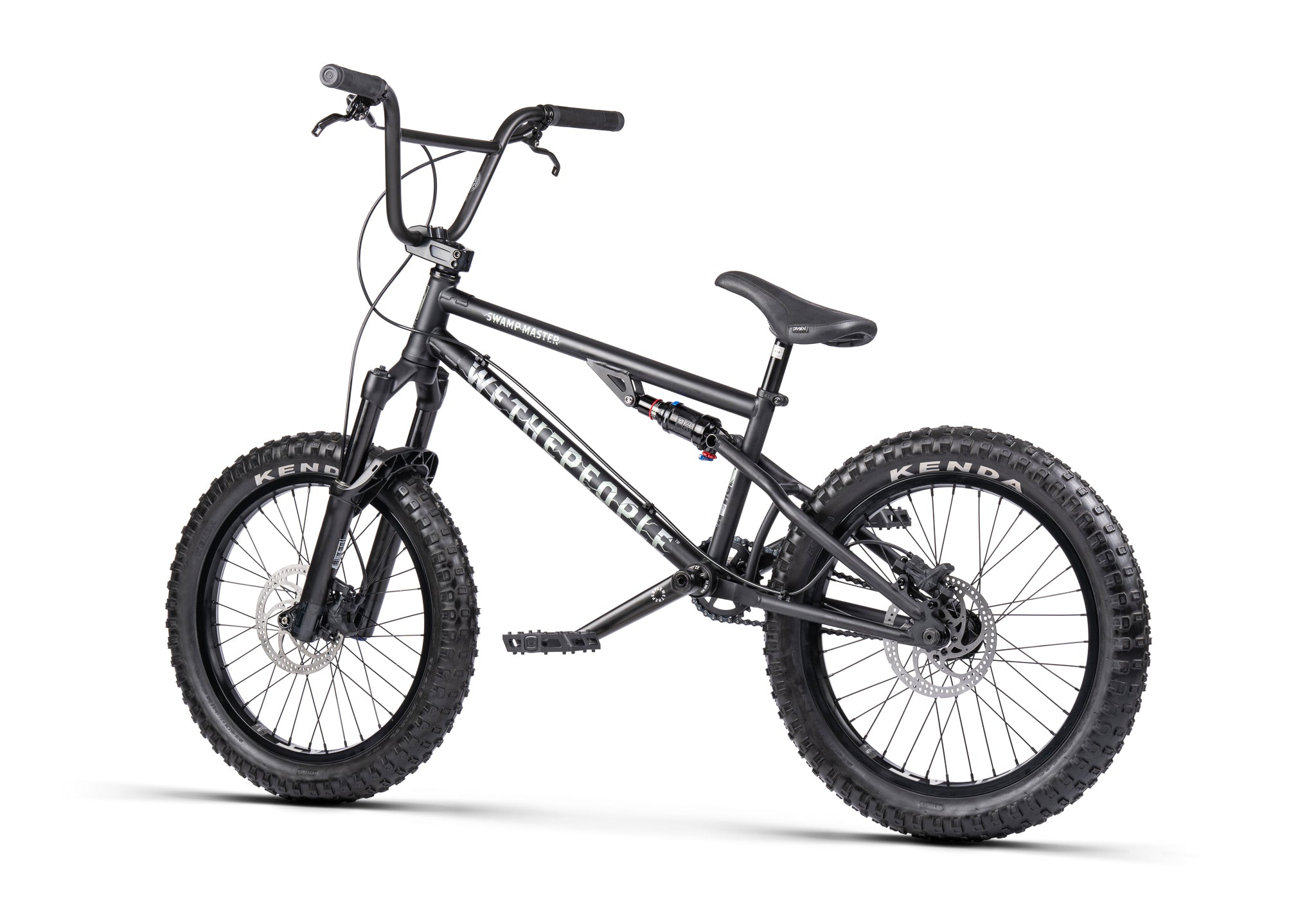

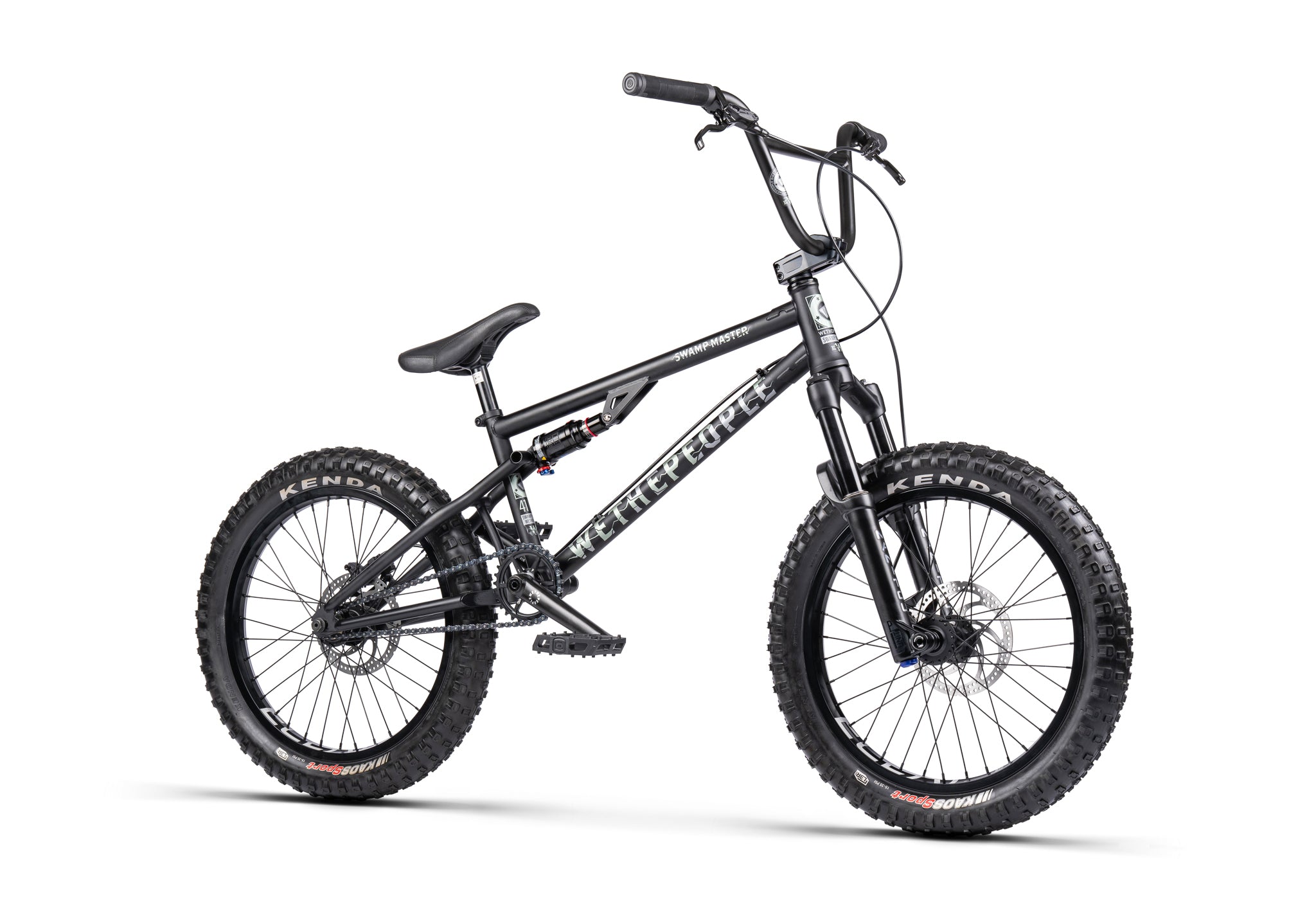

We The People Swamp Master
$1,899.99
$1,999.99
Unit price
/
Unavailable
A WHOLE NEW WORLD OF FUN, THE SWAMP MASTER IS THE FIRST FULL SUSPENSION COMPLETE BMX BIKE. INSPIRED BY THE WORLD OF DOWNHILL MOUNTAIN BIKING, MIXED WITH CLASSIC BMX ROOTS AND FUN, THIS BIKE IS UNIQUE TO SAY THE LEAST. ENGINEERED IN COLOGNE, GERMANY, THE SWAMP MASTER IS DESIGNED FOR SERIOUS DOWNHILL SHREDDING WHILST GAINING THE MOVEMENT AND FREEDOM THAT A BMX BIKE OFFERS. SPEC’D WITH A MIXTURE OF OUR OWN AFTERMARKET BMX COMPONENTS AND GENUINE MTB PARTS FROM KENDA AND MANITOU, THE SWAMP MASTER IS THE FIRST PRODUCTION COMPLETE BIKE OF ITS KIND AND IS SET TO REVOLUTIONISE A NEW CHAPTER IN BMX AND MTB FUSION
Specifications
FRAME:
WETHEPEOPLE "SWAMP MASTER" FRAME, 4130 FULL CRMO, (ROCKSHOX MONARCH RL* / SUNTOUR RAIDON LO* - DEPENDING ON AVAILABILITY)
FORK:
MANITOU "MACHETE J-UNIT COMP" FORK, CUSTOM TUNED, 100MM TRAVEL, THRU-AXLE
BARS:
WETHEPEOPLE "SWAMP MASTER" BAR, POST LIQUID HEAT-TREATED 4130 CRMO
GRIPS:
SALT "EX" GRIPS, 154MM, FLANGLESS
STEM:
ÉCLAT "BURNS TOPLOAD STEM, CNC ALLOY, 51MM REACH
HEADSET:
WETHEPEOPLE "COMPACT" INT. HEADSET, SEALED BEARING
GYRO:
-
LEVER:
BENGAL "ARES 3" DISC BRAKE LEVERS
BRAKES:
BENGAL "ARES 3" HYDRAULIC DISC BRAKES, 160 MM ROTORS
CRANKS
WETHEPEOPLE "LOGIC" TUBULAR 3PC CRANK, 22MM, CRMO, 175MM, 48 SPLINE
BB:
WETHEPEOPLE "COMPACT" BB, 22MM, PRESS FIT, SEALED BEARING
PEDALS:
WETHEPEOPLE "LOGIC" PEDALS, NYLON/FIBERGLASS
CHAIN:
ÉCLAT "DIESEL" CHAIN
SPROCKET:
WETHEPEOPLE "PATROL" SPROCKET, CNC, 6061-T6 ALLOY, 28T
DRIVER:
1PC CASSETTE DRIVER, 9T, SEALED BEARING, 6 PAWL, 120 POE
FRONT HUB:
ÉCLAT "EXILE" DISC FRONT HUB, BOOST 110MM, FULLY SEALED, 15MM THRU AXLE, 36H
REAR HUB:
ÉCLAT "EXILE" DISC CASSETTE HUB, FULLY SEALED, 3/8" FEMALE BOLTS, 36H, 120 POE
HUBGUARDS:
-
FRONT RIM:
ÉCLAT "BONDI" RIM, 38MM WIDE, FLASH WELDED, DOUBLE WALL, 36H
REAR RIM:
ÉCLAT "BONDI" RIM, 38MM WIDE, FLASH WELDED, DOUBLE WALL, 36H
SEAT:
ÉCLAT "BIOS" PIVOTAL SEAT, SLIM PADDED
SEAT POST:
WETHEPEOPLE "TEAM" PIVOTAL SEAT POST, 200MM LONG, 6061-T6 ALLOY
SEAT CLAMP:
INTEGRATED SEAT CLAMP
TIRES:
KENDA "KAOS" TIRES, 20"X 2.6", FRONT & REAR
PEGS:
-
WEIGHT:
14.5KG / 31.97LBS
COLORS:
MATT BLACK
Geometry
FRAME
A - TOP TUBE LENGTH:
21.5"
B - CHAIN STAY LENGTH:
14.1"-14.8"
C - HEAD TUBE ANGLE:
71°
D - SEAT TUBE ANGLE:
70°
E - BB HEIGHT:
12.15"
F - STANDOVER HEIGHT:
9.5"
HANDLE BAR
G - BAR RISE:
8"
H - BAR WIDTH:
29.15"
I - BAR BACK SWEEP:
11°
J - BAR UP SWEEP:
2.5°
