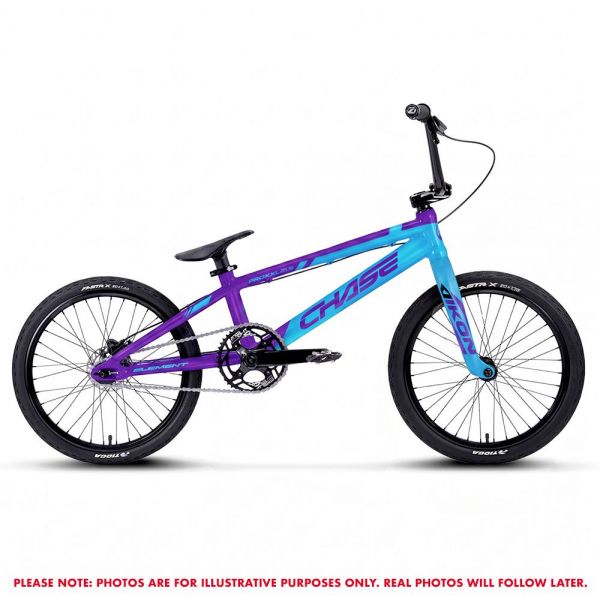

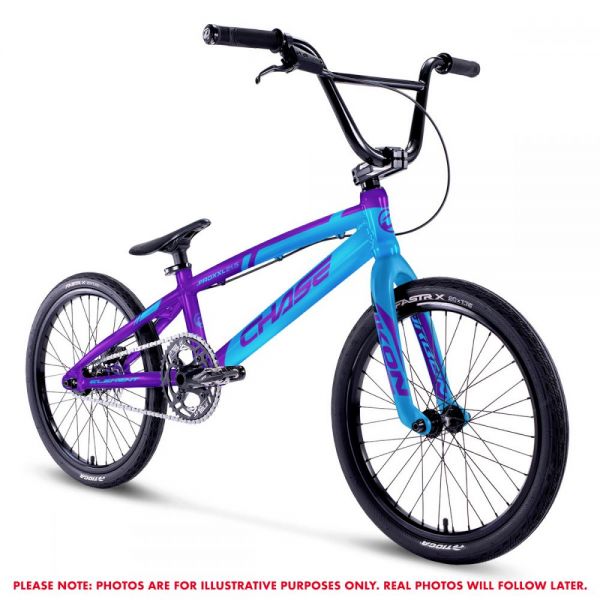

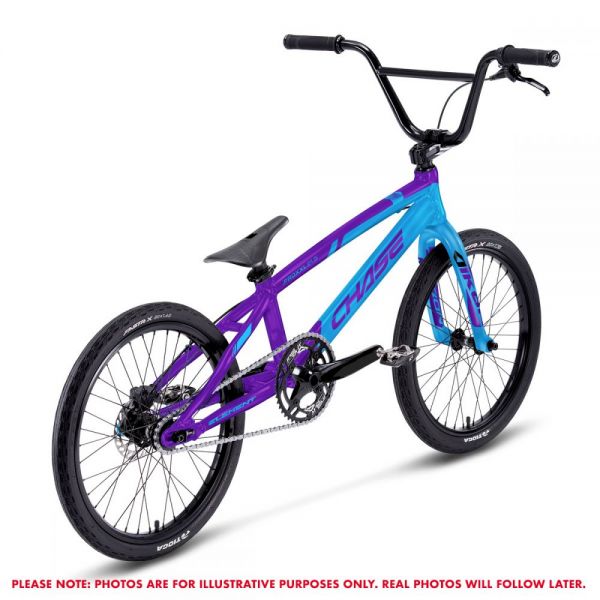

Chase Element Pro XXL 2027

$1,399.99

DESCRIPTION

The ultimate Pro level complete bike - the Chase Element. With a updated frame design, that uses the same geometry as our Championship winning ACT and RSP Frame., letting you know it's a serious race bike. Our bikes can help you win by giving you an unfair, advantage with some of the most advanced technology for a complete bike in BMX racing.

Chase has been pushing the envelope for the past 12 years with our complete bikes and the newest edition of the Element, is the best BMX race bike we have ever offered.

The Element frame is built up with some of the best parts in BMX, including- IKON Tapered Pro Carbon 20mm Fork, Element Alloy Rims, Tioga Fastr Tires, KMC Chain, Sealed Bearing ISO Cassette hub with 72 points of engagement, 31.8 Handlebars & Stem, Insight PL4 Cranks, Insight Chainring, Grips, and Shimano Hydraulic Rear Brake with 120mm Rotor.

FRAME: Chase Element Pro XXL 21.5" NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8" to 1.5", Close Drop Out
FORK: Ikon Tapered Carbon, Alloy 1-1/8" to 1.5" Steer Tube, 20mm Drop Out
STEM: Chase Element 31.8mm Alloy 53mm
HANDLEBAR: Chase Element 31.8mm 8.5"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Insight PL4 Pro 175mm 2 Piece Crank Alloy Arm, 4 Bolt Spider, Press Fit BB86
HUBS: Sealed Bearing, 3/8" Bolts Front, ISO Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets Rear, 16T cog
RIMS: Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve Front & Rear
TIRES: Tioga Fastr X Front & Rear
BRAKES: Shimano Hydraulic, 120mm Rotor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE:

  • 5.9" - 6.2" / 1m75 - 1m88

WEIGHT:

  • 21.05 LBS / 9.55 KG WITH PEDALS


SPECIFICATIONS :

FRAME Chase Element Pro XXL 21.5" NEW Top Tube 7005 T6 Alloy, Tapered Integrated Head Tube 1-1/8" to 1.5", Close Drop Out
FORK Ikon Pro 20" Tapered Carbon, Alloy 1-1/8" to 1.5" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap
HEADSET Tapered Integrated IS 42/52 1-1/8" to 1.5", Sealed Bearing
HANDLEBAR Chase Element Cromo 8.5", Diameter 31.8mm, Rise, 28.5" Wide, 10° Back Sweep & 2° Up Sweep
GRIPS Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug
STEM Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 50mm 6061 T6 Alloy CNC Laser Etched Logo
BB Press Fit 68/73mm Cartridge Bearings
CHAINRING Insight 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring
CRANK Insight PL4 Pro 2 Piece Crank 175mm Alloy Arm, 4 Bolt Spider, Integrated Pedal Inserts, Cromo Chain Ring Bolts / Nuts
PEDAL Nylon Platform Pedal 9/16"
CHAIN KMC Z1 narrow 1/2"x3/32"
COG 16 Tooth
FRONT HUB 36H, Sealed Bearing, 3/8" Bolts
REAR HUB ISO 36H, Sealed Bearing, 3/8" Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets
SPOKES 14 Gauge, Steel
NIPPLES Brass 14Gx5/8"
RIMS Chase Element Alloy 406 Double Wall 36H 20"x1.75" Presta Valve
FRONT TIRE Tioga Fastr X 20"x1.75" 60 TPI Wire Bead
REAR TIRE Tioga Fastr X 20"x1.60" 60 TPI Wire Bead
TUBES 20''x1.5"-1.75" Presta Valve
BRAKES Shimano Disc Brake BL-MT200(R) Hydraulic, 120mm Rotor
SADDLE ELEVN PC Pivotal
SEAT POST Chase Aero Pivotal 27.2x260mm Alloy
SEAT CLAMP Chase Aero 27.2mm QR Alloy
CHAIN TENSIONER Integrated Built-In With New Lock Disc Adaptor



GEOMETRIES :

cadre
